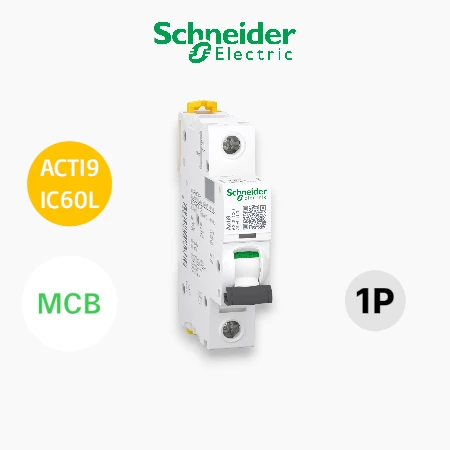

Schneider ACTI9 IC60L 1P 20A C MINIATURE CIRCUIT B

Name: Schneider ACTI9 IC60L 1P 20A C MINIATURE CIRCUIT B
Brand: SCHNEIDER
SKU: A9F94120
Price: 425835 IDR
Availability: InStock

1 terjual dalam 16 jam terakhir

5 orang menambahkan produk ke keranjang

Merek:

SCHNEIDER

iC60L – miniature circuit breaker – 1P – 20A – C curve

Estimasi Kirim: Sen, Agu 10 (Sabtu-Minggu Tutup)

... orang melihat produk ini sekarang

SKU: A9F94120 Kategori: MCB, Proteksi Sirkuit, Schneider Brand: SCHNEIDER

Harga aslinya adalah: Rp851.670.Harga saat ini adalah: Rp425.835.

Tersedia

Deskripsi Cek Ongkir

Description

This Acti9 iC60L is a low voltage miniature circuit breaker (MCB). It has 1P with 1 protected pole, rated current 20A and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. It is DIN rail mountable. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Specifications

Main
Device application	Distribution
Range	Acti9
Product name	Acti9 iC60
Product or component type	Miniature circuit-breaker
Device short name	iC60L
Poles description	1P
Number of protected poles	1
[In] rated current	20 A
Network type	DC AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	70 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2 20 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2 15000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Utilisation category	Category A conforming to EN/IEC 60947-2
Suitability for isolation	Yes conforming to EN/IEC 60947-2 Yes conforming to EN/IEC 60898-1
Standards	EN/IEC 60947-2 EN/IEC 60898-1

Complementary
Network frequency	50/60 Hz
Magnetic tripping limit	8 x In +/- 20 %
[Ics] rated service breaking capacity	35 kA 50 % conforming to EN/IEC 60947-2 – 12…60 V AC 50/60 Hz 25 kA 50 % conforming to EN/IEC 60947-2 – 100…133 V AC 50/60 Hz 12.5 kA 50 % conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz 25 kA 100 % conforming to EN/IEC 60947-2 – 12…60 V DC 20 kA 100 % conforming to EN/IEC 60947-2 – 60…72 V DC
Limitation class	3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Local signalling	Trip indicator
Mounting mode	Fixed
Mounting support	DIN rail
Comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	2
Height	85 mm
Width	18 mm
Depth	78.5 mm
Net weight	0.215 kg
Colour	White
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections – terminals	Single terminal (top or bottom) 1…25 mm² rigid Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length	14 mm for top or bottom connection
Tightening torque	2 N.m top or bottom
Earth-leakage protection	Without
