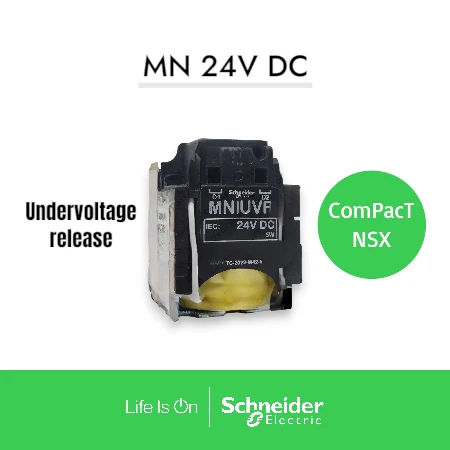

Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections

Main
Range
ComPacT
Range of Product
ComPact NSX100…250
ComPacT NSX100…250
ComPact NSX400…630
ComPacT NSX400…630
ComPact NSX100…250 DC
ComPacT NSX100…250 DC
ComPact NSX100…250 DC PV
ComPacT NSX100…250 DC PV
ComPact NSX400…630 DC
ComPacT NSX400…630 DC
ComPact NSX400…630 DC PV
ComPacT NSX400…630 DC PV
Galaxy VS
Device short name
MN
Product or Component Type
Voltage release
Device Application
Control
Range Compatibility
Galaxy VS
Galaxy VX
Voltage release type
Opening coil
Undervoltage release
[Uc] control circuit voltage
24 V DC
Range compatibility
ComPacT ComPacT NSX
ComPacT ComPacT NSX DC
ComPact ComPact NSX
ComPact ComPact NSX DC
EasyPact EasyPact CVS
PowerPact PowerPact Multistandard
Complementary
Operating threshold
0.35…0.7 x Un opening
0.85 x Un closing
Response time
50 ms
Supply holding power
5 W
Supply inrush power
10 W
Auxiliary connection terminal
spring 0.0008…0.002 in² (0.5…1.5 mm²) AWG 20…AWG 16)
Wire stripping length
0.3 in (7 mm)
